Aluminium machine building profiles: compatible, precise, versatile
Thanks to their dimensional accuracy, aluminium machine building profiles from W. Hartmann & Co. provide the ideal basis for stable structures in machine and plant engineering. The compatible system comprises six profiles on a uniform 40 mm grid, enabling versatile solutions for individual requirements combined with fast assembly. A comprehensive range of accessories completes the product line. Easy machining and flexible connection options allow structures to be built efficiently and adapted or extended at any time. The profiles feature a high-quality surface and combine functional properties with a modern, precise appearance. Aluminium is also durable, corrosion-resistant and fully recyclable.
Why W. Hartmann & Co.
Individually finished
Profiles in your preferred colour – RAL, anodised or stainless-steel look.
Flexible and Reliable
With our own fleet, we get your goods to their destination quickly and reliably.
Personal Support
Direct, dependable customer service – fast and solution-oriented.
Experience Since 1925
Expertise, quality and continuity for more than 100 years.
Product overview
Profile system (40 mm grid, 10 mm slot)

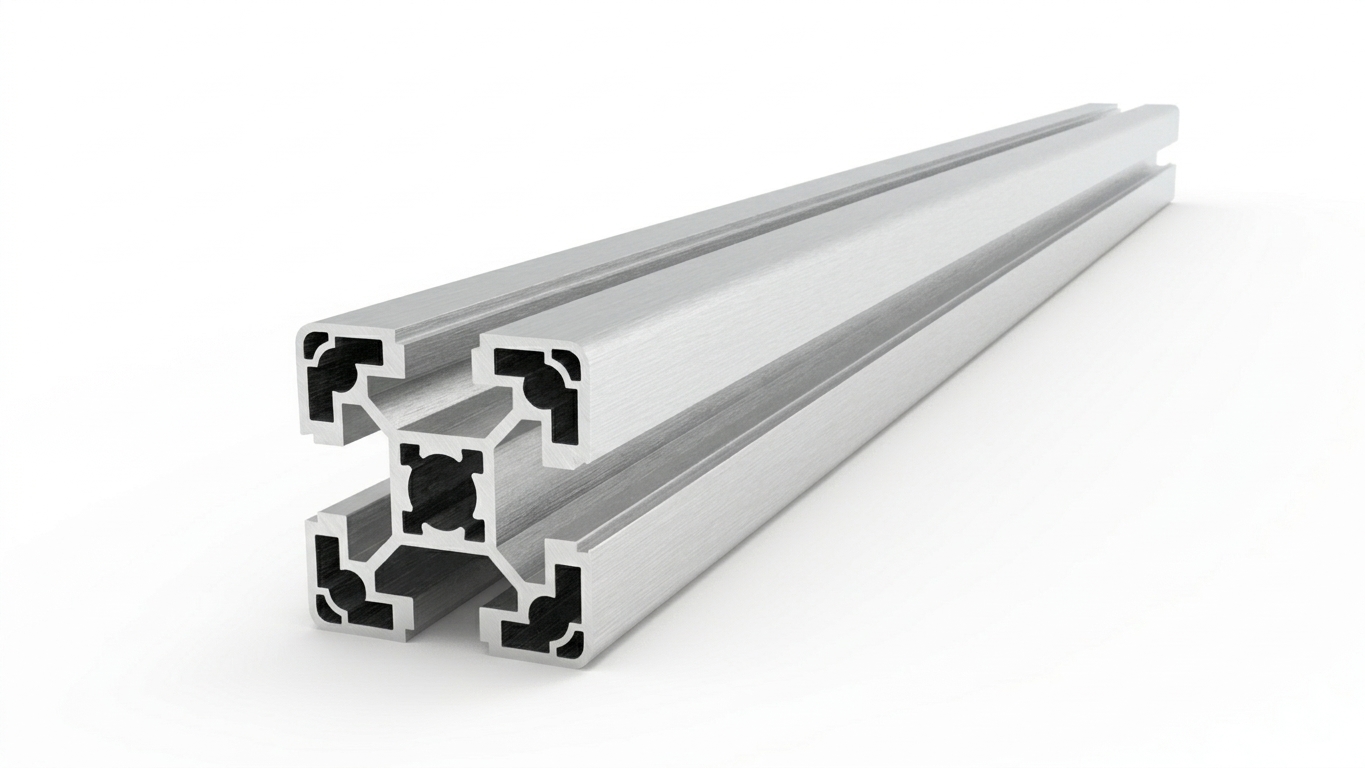

B41 profile, 40x40mm
LMSMB41R040040L

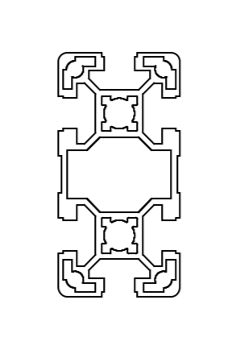

B41 profile, 40x80mm
LMSMB41R040080L

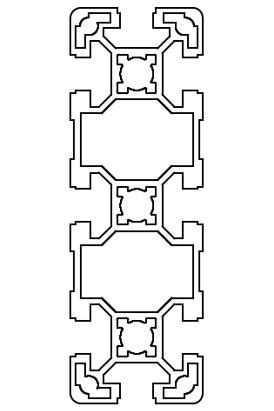

B41 profile, 40x120mm
LMSMB41R040120L

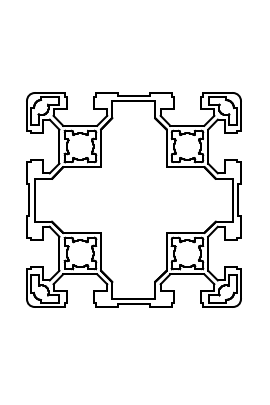

B41 profile, 80x80mm
LMSMB41R080080L

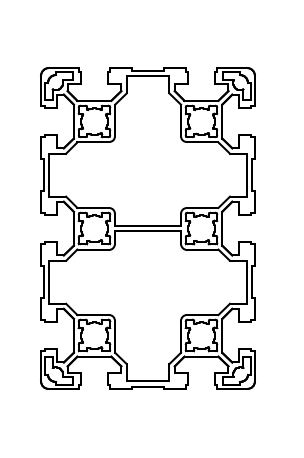

B41 profile, 80x120mm
LMSMB41R080120L

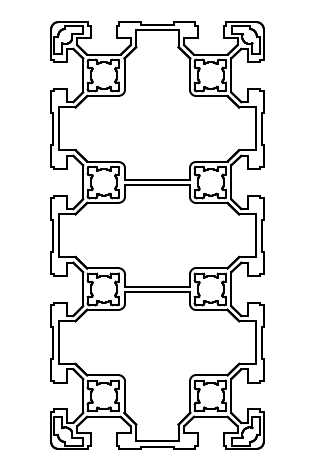

B41 profile, 80x160mm
LMSMB41R080160L
Accessory range

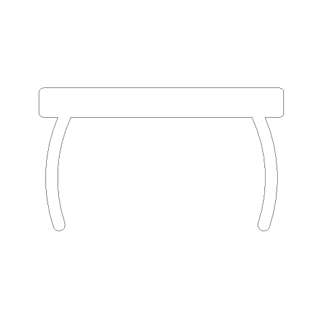

Slot cover
Black, plastic
LMSMBZ/ABD-10-SW

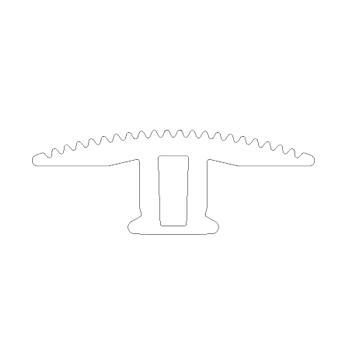

Cover strip
Black, EPDM rubber
LMSMBZ/EPDM-40x10

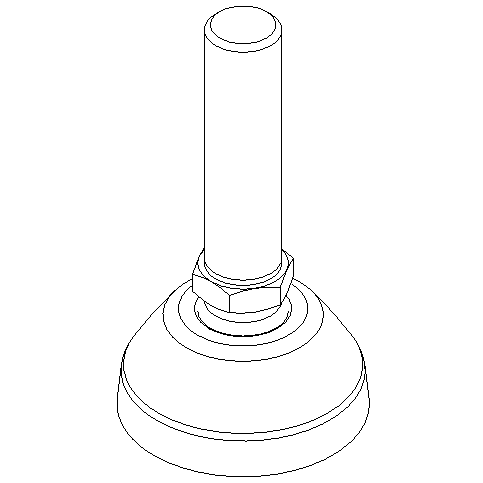

Levelling foot
40 mm, M12 thread, length 83 mm
LMSMBZ/FUSS-40M12X83-PA

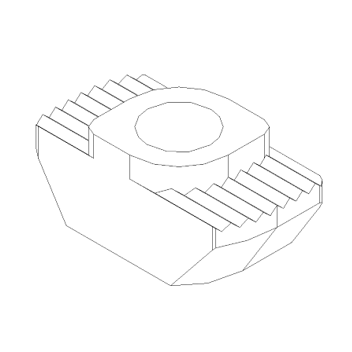

Hammer-head nut M6 or M8
LMSMBZ/HKM-10-M6 or LMSMBZ/HKM-10-M8

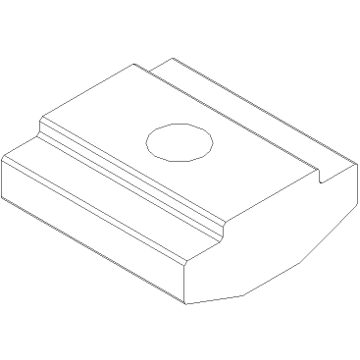

Heavy-duty slot nut M6 or M8
LMSMBZ/NTS-10-M6 or LMSMBZ/NTS-10-M8
Also available with retaining spring: LMSMBZ/NTE-10-M6 or LMSMBZ/NTE-10-M8

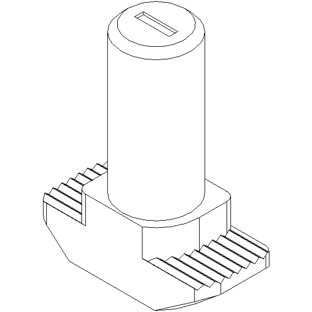

Hammer-head bolt M8x20
LMSMBZ/SCHR-HK-M8x20

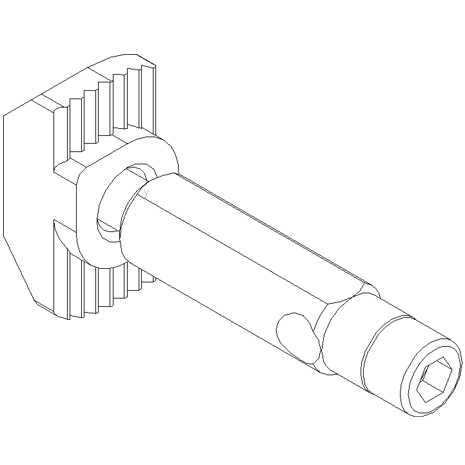

Automatic connector
LMSMBZ/VERB-AUTO-N10

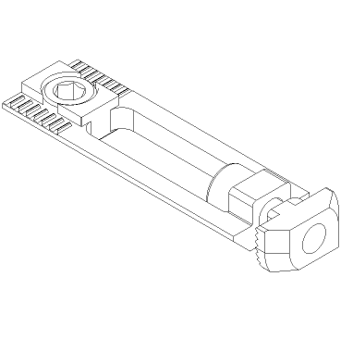

Milled connector
LMSMBZ/VERB-FRAES-N10

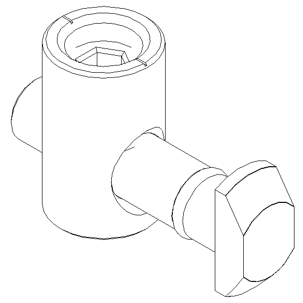

Central bore connector
LMSMBZ/VERB-ZV-4100
Rotated by 90°: LMSMBZ/VERB-ZV-4190

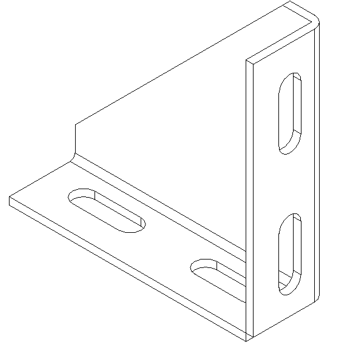

Bracing angle
100 mm, galvanised steel
LMSMBZ/Winkel-30x100-ST
End cap

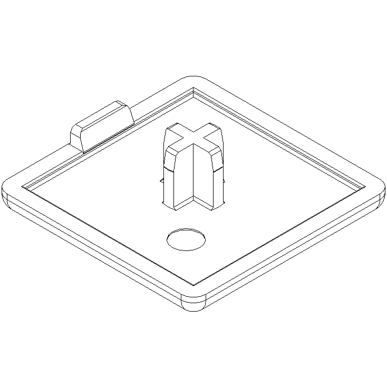

40x40mm, black
LMSMBZ/Kappe-4040

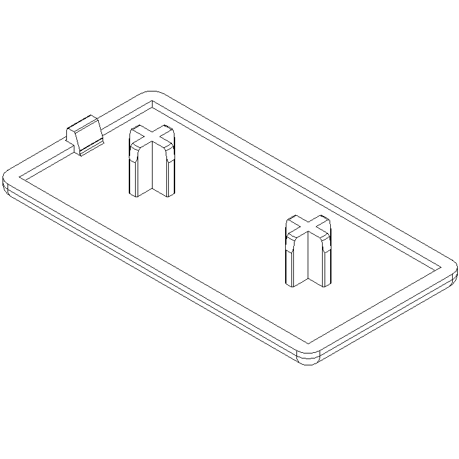

End cap
40x80mm, black
LMSMBZ/Kappe-4080
End cap

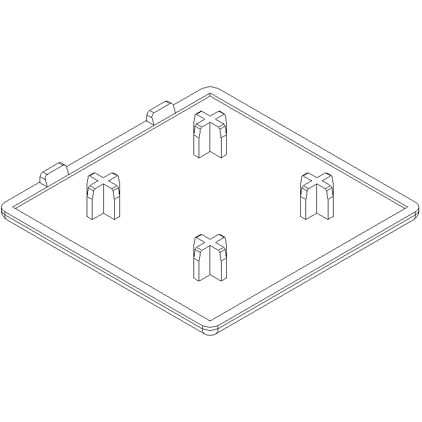

80x80mm, black
LMSMBZ/Kappe-8080
Maximum Choice for Maximum Flexibility
A wide range, numerous options: machine building profiles tailored precisely to your application.
Variety of dimensions
- 6 different machine building profiles from the B41 series
- 6000 mm standard length, special lengths available on request
- Can’t find the profile you need? Get in touch with us!
Variety of surface finishes
- Anodised, 20 µm, E6/EV1 (silver)
- On request: anodised E6/C35 or powder-coated to RAL
Variety of machining options
- Cutting
- Drilling
- Milling
- Deburring
- Punching
- On request: pre-assembly by Hartmann
Variety of accessories
- Additional profiles available from stock (F, L, U, T and Z profiles, as well as bars and tubes)
- Sheet metal available from stock (mill finish, batch anodised, coil anodised, powder-coated and coil-coated)
- Custom bent profiles made from sheet metal
- Many additional alloys available on request
| Alloy | EN-AW 6060 (AlMgSi0,5), further upon request |
|---|---|
| Temper | T66 (F22), further upon request |
| Lenght | 6000 mm (unless otherwise specified), further upon request |
| Manufacturing process | Extruded, further upon request |
| Contact points | For anodised / powder-coated profiles: contact points at both profile ends |
