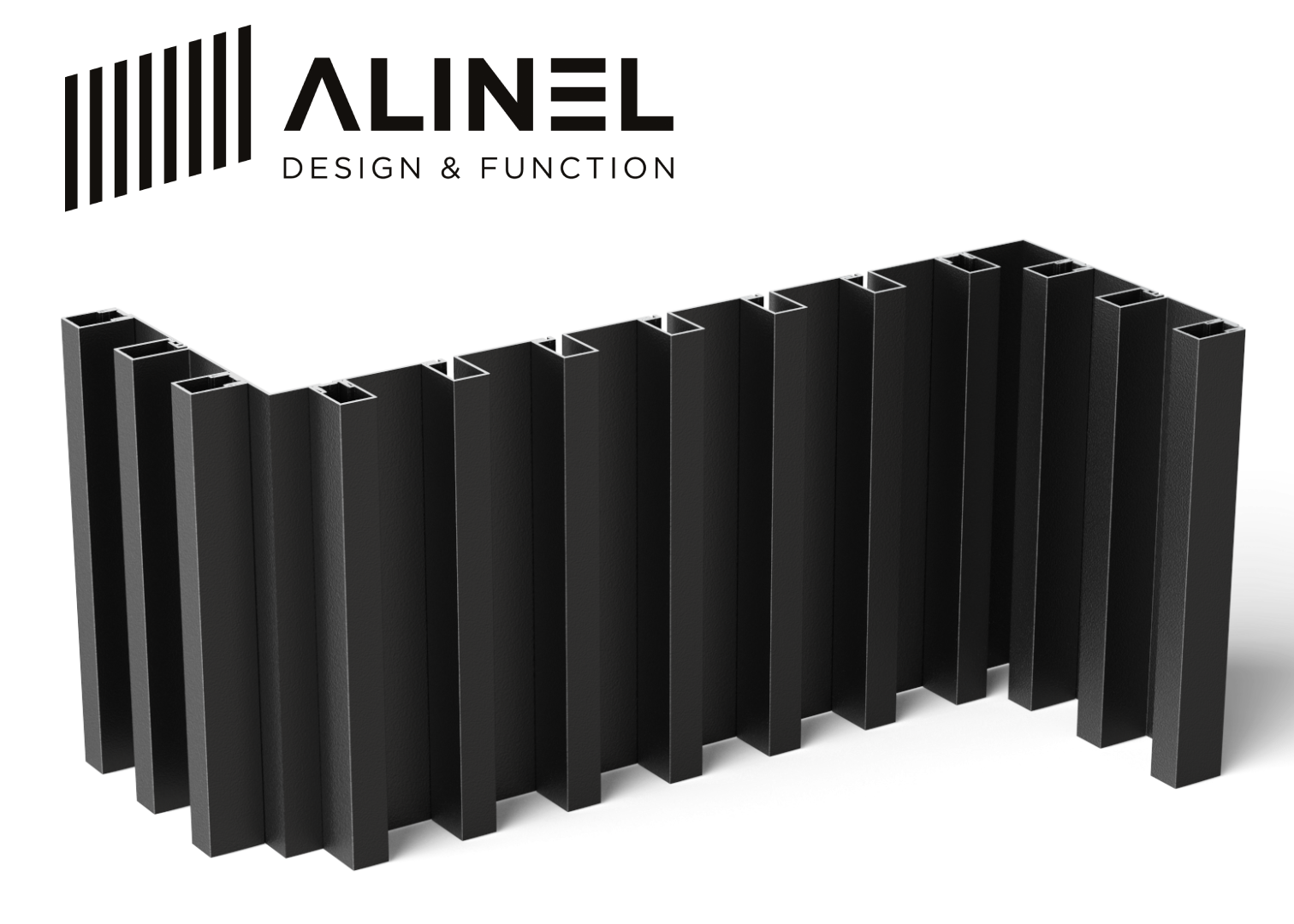

Alinel: Architecture down to the last detail with vertical aluminium façade profiles
Alinel aluminium façade profiles give buildings clean vertical lines and a distinctive character, from understated design to bold architectural statement, from small accent areas to complete façades.
With a range of profile series, diverse surface finishes and individual design options, Alinel creates solutions that blend harmoniously into a building’s overall concept. Doors, windows, gates and selected functional elements can be visually integrated into the façade design for a cohesive overall look. Thanks to the patented tooth-and-hook connection, Alinel profiles also offer cost-efficient installation. Alinel profiles are fully recyclable, in keeping with sustainable architecture.
As Alinel’s exclusive distribution partner for the German market, W. Hartmann & Co. offers the full product range.
Alinel from W. Hartmann & Co.
Striking façade design
Alinel’s vertical aluminium profiles create clean, modern lines. Different profile geometries allow for individual façade designs, from straight and understated to expressive and full of character.
Seamless integration
Façades, doors, windows and gates can be designed to match one another. Additional accents such as letterboxes, house numbers or doorbell panels blend harmoniously into the Alinel façade.
Well-engineered installation
The patented Alinel tooth-and-hook connection allows concealed fixing and finely adjustable installation.
Wide range of colours
Whether classic RAL colours, metallic effects, anodised or wood finishes: the various Alinel versions offer countless ways to tailor the façade to the overall architecture and personal preferences.
A Series
Symmetrical, vertical profile structures create a calm, linear façade. The A Series is ideal for timeless architecture centred on clear geometry and precise detailing.

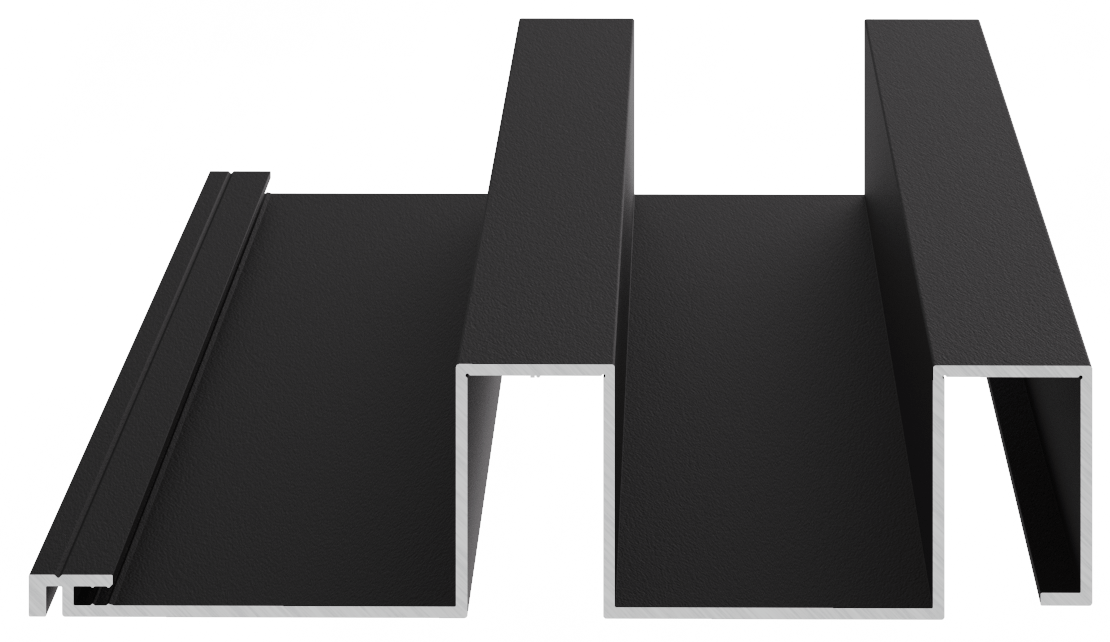

B Series
A striking profile design for versatile applications. With its pronounced sense of depth, the B Series plays skilfully with light and shadow.

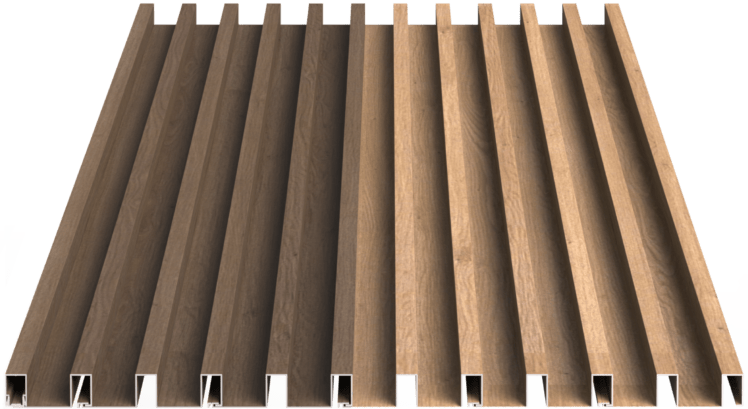

B Series Wood
The B Series Wood combines the characteristic profile design with a warm wood finish. The Oak Malt and Oak Toffee versions create a natural appearance combined with a durable façade concept.

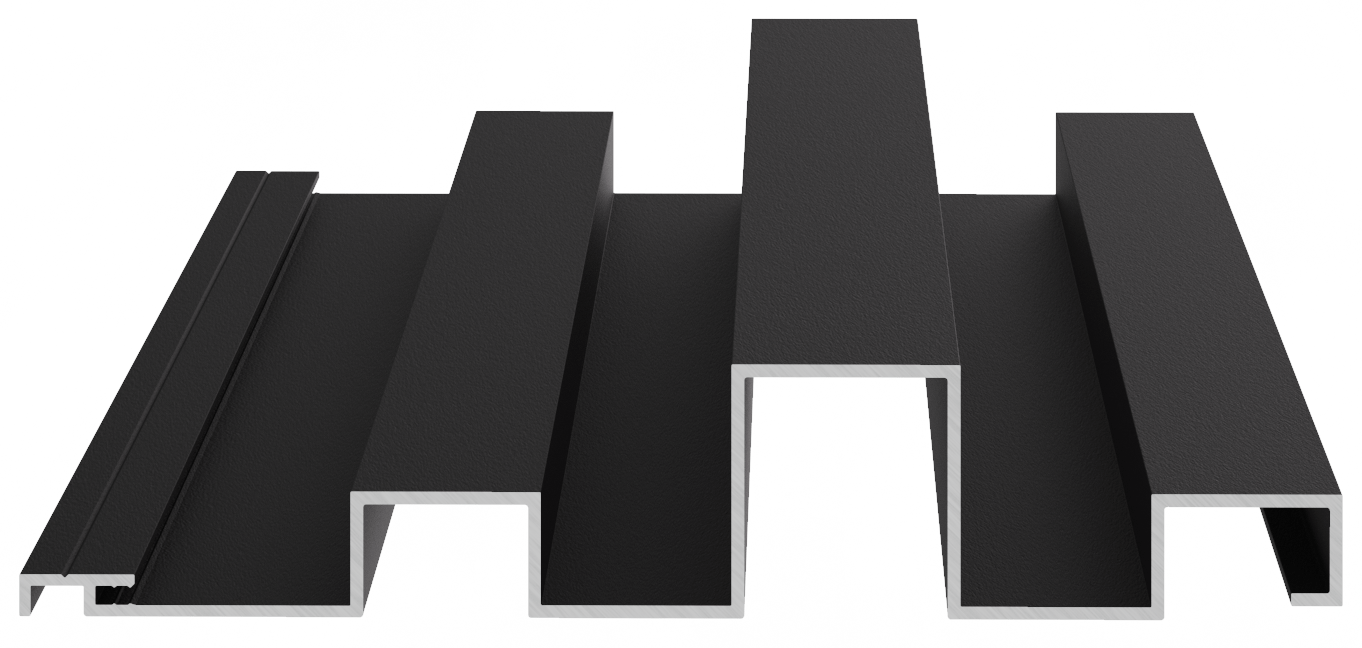

C Series
Irregular surfaces give the C Series a striking, lively effect. It is the right choice for façades that deliberately break with classic linear patterns and display an unmistakable architectural signature.

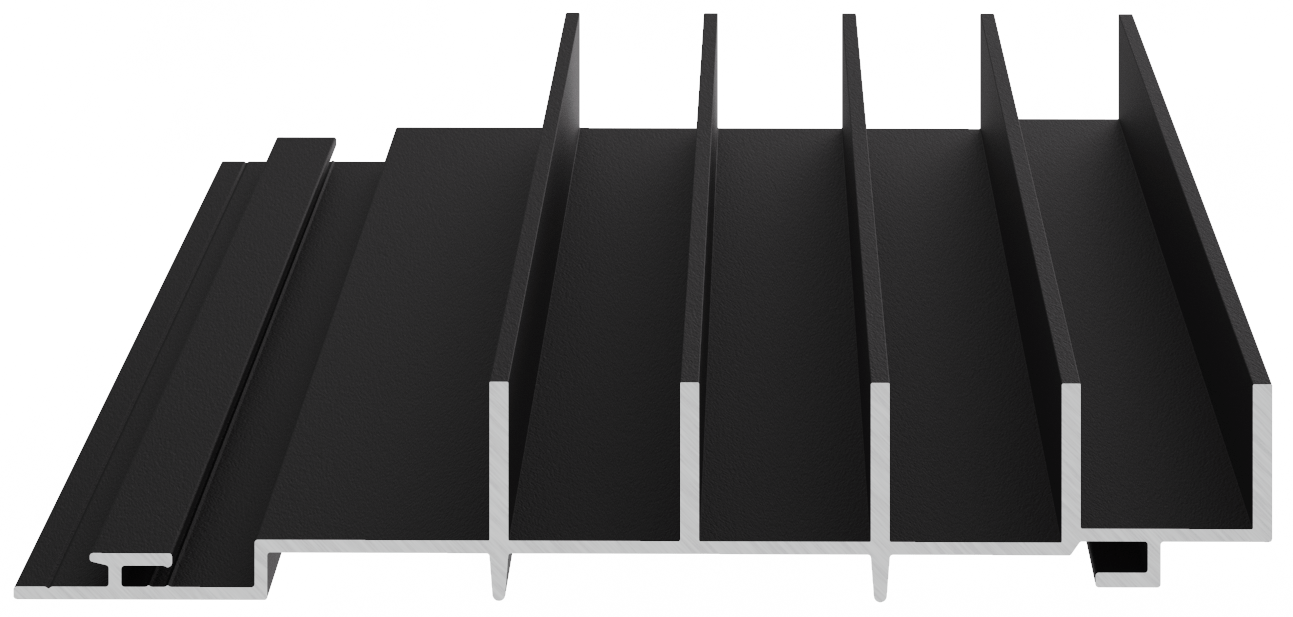

D Series
Its pronounced fins give the façade a special sense of depth and an exclusive appearance. Additional accents can be incorporated into the design as required.

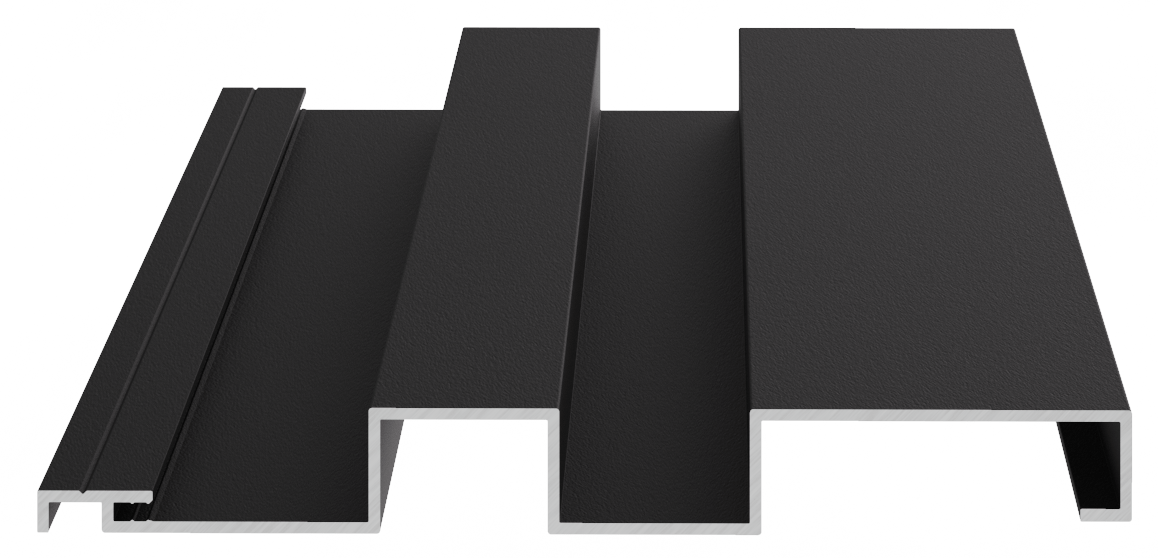

E Series
The E Series takes the look of a classic timber board wall and reinterprets it with a modern profile design. It offers versatile combination options, including with the A and C Series.

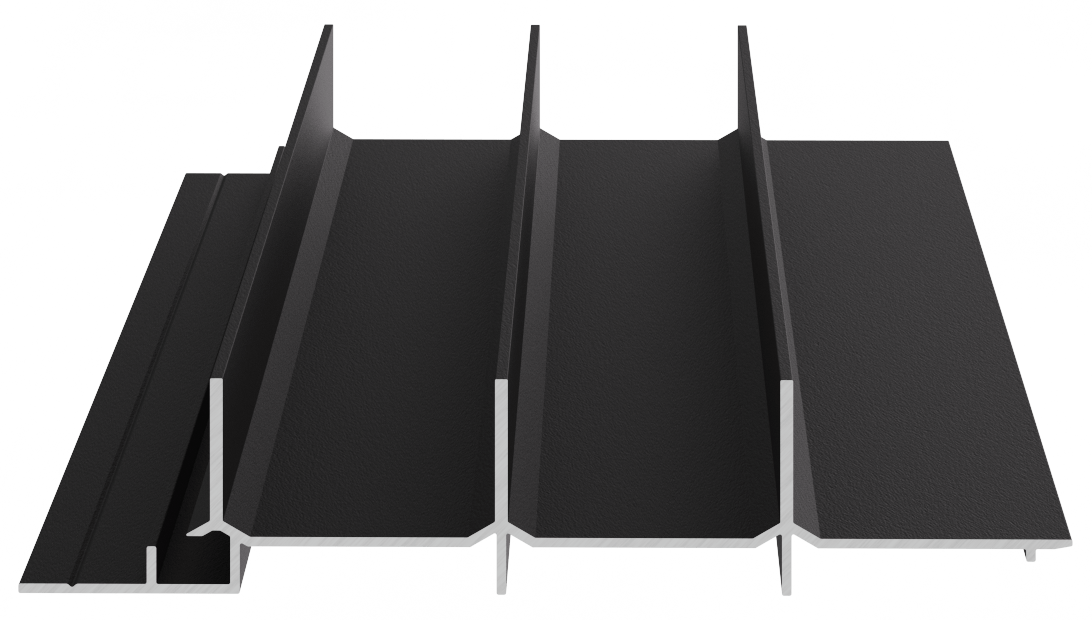

F Series
Similar to the D Series, but with reduced weight, in keeping with sustainable architecture. With its new patented tilt-and-click system, the F Series also offers cost-efficient installation.
Specification
| Alloy | EN AW 6060 T66 |
|---|---|
| Production process | extruded |
| Top side | powder-coated in the chosen colour. Wood: façade film in wood design. |
|---|---|
| Reverse side | mill finish, powder-coated on request. Wood: primed. |
